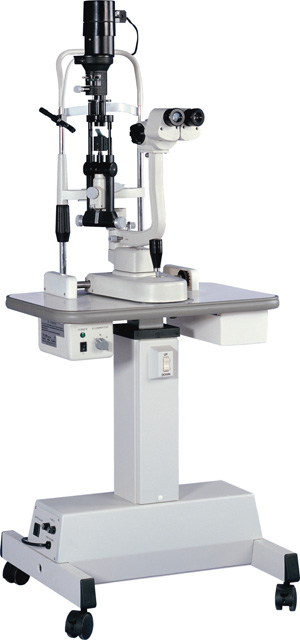

YZ5F1 |
| Microscope Type |
Parallel included angle type |
| Magnification |
Five-step magnifications |
| Eye Piece |
12.5x |
| Total Magnification and |
6x（Φ33）,10x（Φ22.5）,16x(Φ14) |
| Field of View(mm) |
25x（Φ8.8） ,40x（Φ5.5） |
| Range of Pupil Distance(mm) |
55-75 |
| Adjustment of Diopter |
-5D～+3D |
| Slit Width(mm) |
0～9 adjustable |
| Slit Height(mm) |
|
| Slit Angle |
0°～180° |
| Slit Inclination |
5°,10°,15°,20°, 4 ranges choose |
| Light Spot Diameter |
Φ9,Φ8,Φ5,Φ3,Φ2,Φ1,Φ0.2 |
| Filter |
heat absorption, grey, redfree,cobalt blue |
| Illumination Bulb |
12V/30W halogen bulb |
| Voltage/Frequency |
AC220V±10% 60Hz±1Hz,AC110V±10% 50Hz±1Hz |
| Power |
58VA |
| Electrical Safety Standard |
Conform to Standard IEC601-1.Class1 Type B |
| Whole Packing Volume |
0.30m3 |
| Carton Number |
2 |
| Total Weight |
51kg |
|
