| Specifications |

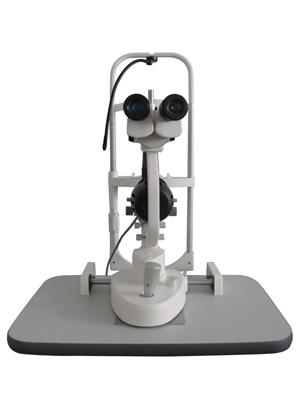

S280 |
| Microscope |
|
| Type |
Galilean-Type |
| Magnification Change |
Non-continuous 5-step revolving drum |
| Total Magnification Ratio |
10X 16X 25X(standard configuration） |
| |
6X 10X 16X 25X 40X（professional configuration） |
| Eyepieces |
12.5X |
| Angle Between Eyepieces |
13° |
| Pupillary Adjustment |
52mm～78mm |
| Diopter Adjustment |
±6D |
| Illumination |
|
| Slit Width |
Continuously variable from 0 to 14mm （at 14mm,slit becomes a circle ） |
| Slit Length |
Continuously variable from 1mm to 14mm |
| Lamp |
6V/20W Halogen Lamp |
| Slit Angle |
0o～180o (continuously adjustable both vertical and horiontal) |
| Filters |
Thermal safety,UV,Red-free,Cobalt Blue |
| Aperture Diameter |
Ф14mm、Ф8mm、Ф3.5mm、Ф0.5mm |
| Base |
|
| Fore and Back Movement |
90mm |
| Left and Right Movement |
100mm |
| Vertical Movement |
30mm |
| Chin-Rest |
|
| Vertical Movement |
80mm |
| Fixation |
Green LED |
| Power |
|
| Input Voltage |
220V/110V～±10% |
| Input Frequency |
50Hz/60Hz |
| Power Consumption |
30VA（max） |
| Output Voltage |
Lamp 6V (continuously adjustable) Fixation 3V |
| Dimension & Weight |
|
| Dimension |
740mm×450mm×500mm |
| Gross Weight |
22Kg |
| Net Weight |
20Kg |
| Working Environment |
|
| Temperature |
+5℃～+40℃ |
| Relative Humidity |
≤80% |
| Air Pressure |
800hPa～1060hPa |
| Storing Environment |
|
| Temperature |
－40℃～＋55℃ |
| Relative Humidity |
≤93％ |
| Air Pressure |
700hPa～1060hPa |
| Transporting Environment |
|
| Temperature |
－40℃～＋55℃ |
| Relative Humidity |
≤93％ |
| Air Pressure |
700hPa～1060hPa |
| Standard |
Slit lamp |
| Optional |
LED lamp |
| |
Beam splitter |
| |
Digital camera adapter |
| |
CCD interface |
| |
Digital modular image |
| |
Image capture software Edition1.0 |
| |
Digital camera |
| |
Digital video camera |
| |
Teaching tube |
